Introduction

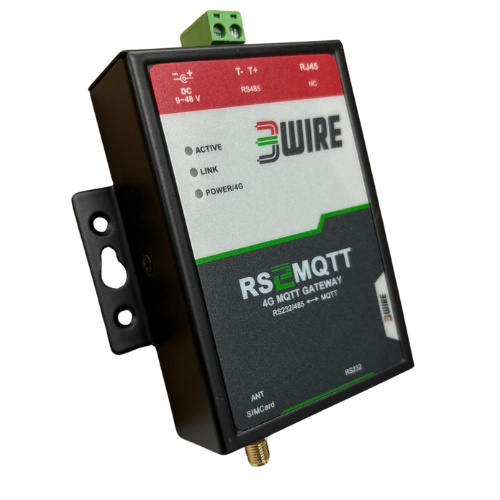

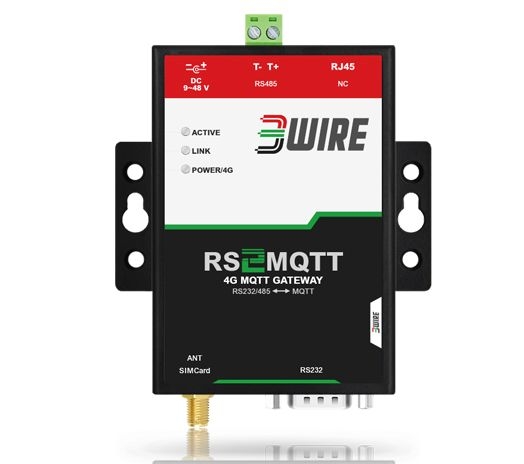

3Wire RS2MQTT & RS2MQTT+ are industrial-grade 4G IoT gateways designed to seamlessly connect serial and Ethernet-based devices—such as PLCs, meters, and sensors—to cloud-based IoT platforms.
Both models feature serial communication ports, while the RS2MQTT+ includes an additional Ethernet port to support TCP/IP-based data polling. These gateways enable reliable data transmission via MQTT or HTTP POST over 2G/4G (GPRS/LTE) networks.
Device configuration and data polling intervals can be easily managed through the serial interface. To ensure data integrity during network disruptions, the gateways are equipped with internal cache memory capable of storing up to 800 data records.
Additionally, both units are built with a dedicated watchdog circuit that ensures stable and continuous 4G operation, making them ideal for mission-critical industrial applications.
Both models feature serial communication ports, while the RS2MQTT+ includes an additional Ethernet port to support TCP/IP-based data polling. These gateways enable reliable data transmission via MQTT or HTTP POST over 2G/4G (GPRS/LTE) networks.
Device configuration and data polling intervals can be easily managed through the serial interface. To ensure data integrity during network disruptions, the gateways are equipped with internal cache memory capable of storing up to 800 data records.
Additionally, both units are built with a dedicated watchdog circuit that ensures stable and continuous 4G operation, making them ideal for mission-critical industrial applications.
Features
-
Supports 3 Modes; TDD-LTE, FDD-LTE & GSM
-
Supports baud rate of 300bps ~ 921600bps, 5 ~ 8 data bits and parity can be “None”, “Odd”, “Even”, “Mark” & “Space”
-
Serial port interface for RS232 / 485; terminal block for RS485 and DB9 for RS232
-
Supports Serial Port Transparent Transmission, Modbus RTU to Modbus TCP & MQTT Protocol
-
Supports serial port AT Command configuration
-
Power+4G / Link / Active LED indicator
-
MQTT can be configured over the serial port
-
DTL-645 & Modbus RTU parameters can be polled and converted to JSON fomat
-
Upto 32 slaves connected on RS485 bus; with upto 200 parameters polled
-
Heartbeat & Keep Alive function ensures a reliable connection
-
Automatic discovery and configuration using provided 3Wire Device Management software
-
Wide voltage 9VDC ~48VDC; DC-Jack
-
Plug-in screw terminal wiring; accepts AWG12 ~AWG30 wires
|
General Specs
|
||
|---|---|---|
|
Interface
|
:
|
RS485/422: Terminal; RS232: DB9
|
|
Power Supply
|
:
|
5.5mm Plug & 2 Way Plugable Terminal Block
|
|
Dimensions
|
:
|
94mm (L) x 65mm (W) x 25mm (H)
|
|
Cellular
|
||
|
Supported Modes
|
:
|
4G CAT 1 Supports 2G & 4G
B1 / B3 / B5 / B8 @ FDD LTE B34 / B38 / B39 / B40 / B41 @ TDD LTE B3 / B8 @ GSM |
|
Transmission Rate (Maximum)
|
:
|
LTE : 10Mbps (downlink ) & 5Mbps (uplink)
GPRS : 85.6Kbps (downlink) 85.6Kbps (uplink) |
|
SIM Card
|
:
|
3V & 1.8V; Standard SIM
|
|
Antenna
|
:
|
50Ω / SMA Type
|
|
Serial Parameters
|
||
|---|---|---|
|
Baud Rate
|
:
|
300 ~ 921600bps
|
|
Data Bits
|
:
|
5 bits ~ 8 bits
|
|
Parity
|
:
|
None, Odd, Even, Mark, Space
|
|
Communication
|
||
|---|---|---|
|
Protocol
|
:
|
MQTT & HTTP Post
|
|
Configuration
|
:
|
3Wire Device Management Software
|
|
Power Requirement
|
|
9～24V DC，80mA@12V； 40mA@24V
|
|
Environment
|
||
|---|---|---|
|
Operation Temperature
|
:
|
-40°C ~ 85°C
|
|
Storage Temperature
|
:
|
-45°C ~ 125°C
|
|
Humidity
|
:
|
5 ~ 95% RH
|
