Dual-Master RS-485 Communication Made Reliable
Two RS-485 masters. Shared slave network. No cross-interference.

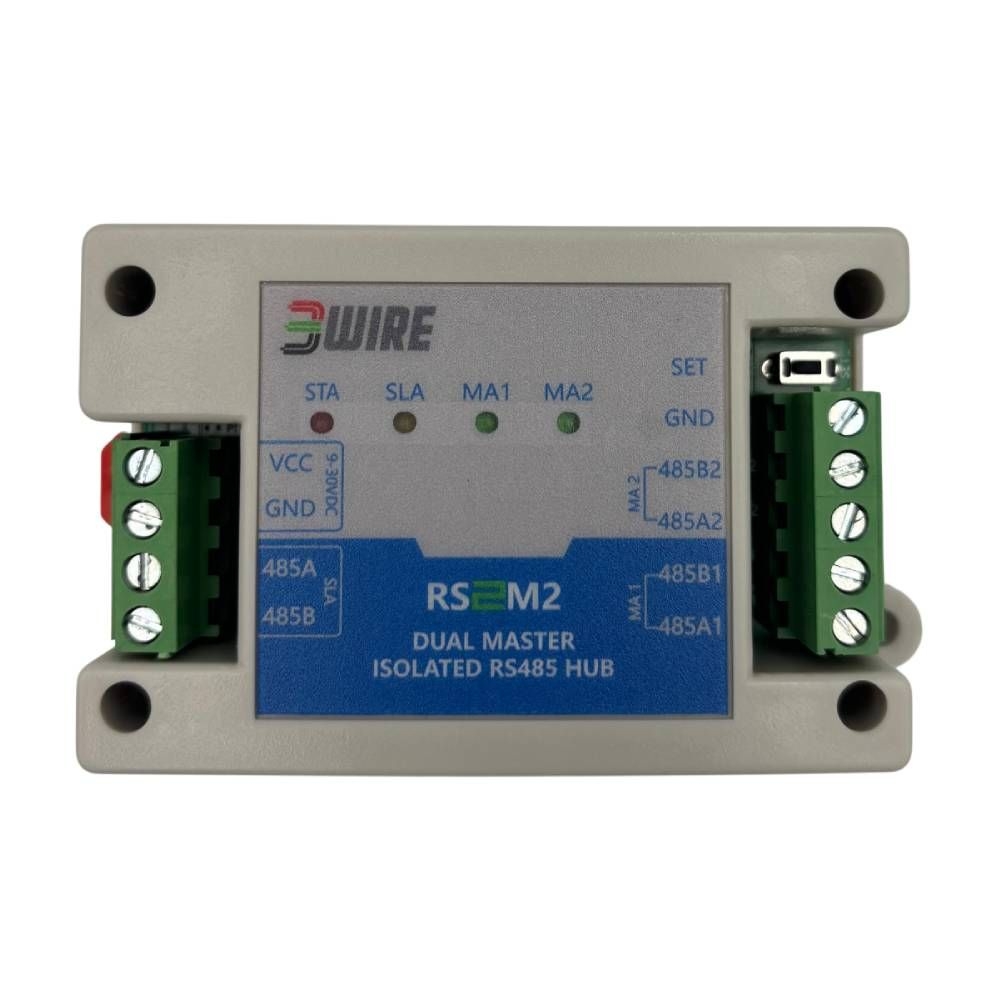

3Wire RS2M2 is a 2-channel isolated RS-485 hub that allows two RS-485 master devices to communicate with one or more slave devices safely and reliably.
It ensures that slave responses are sent only to the corresponding master that initiated the request, helping avoid communication conflict and cross-interference in shared RS-485 networks.
Introduction
RS2M2 enables two RS-485 master devices to communicate with one or more slave devices without cross-interference. It is useful where two systems need access to the same RS-485 slave network while maintaining proper communication routing.
The hub features photoelectric isolation for strong signal integrity, together with 15kV ESD protection and 5kA lightning surge protection to safeguard communication interfaces against electrical disturbances.
Each of the three communication ports includes an LED indicator for real-time monitoring. The hub supports transparent data transmission, and the communication format and baud rate can be adjusted through software.
Why Use RS2M2?
Two-Master RS-485 Sharing
Allows two RS-485 master devices to communicate with shared slave devices without response conflict.
Isolated Communication
Provides electrical isolation between communication and power, and between master and slave interfaces.
Industrial Protection
Protects RS-485 communication lines with ESD, lightning and surge protection for reliable field operation.
Core Features
Wide Power Input
Supports DC 9–30V input with built-in overcurrent and reverse polarity protection.
High Slave Capacity
Slave communication port supports up to 175 RS-485 slave nodes.
Dual Master Support
Enables two RS-485 master devices to communicate with one or more slave devices.
Robust Protection
Signal interfaces include anti-static, anti-lightning and anti-surge protection.
Protocol Compatible
Supports master-slave protocols such as Modbus for industrial communication systems.
Dual Electrical Isolation
Provides isolation between communication and power, and between master and slave interfaces.
Independent Port Settings
Each of the three communication ports can be configured independently for baud rate and communication format.
High-Speed Architecture
Built with a 32-bit microcontroller and high-speed optocouplers, supporting baud rates up to 115,200 bps.
Feature Summary
- 2-channel isolated RS-485 hub
- Supports two RS-485 master devices
- Prevents master-to-master response interference
- Routes slave responses to the initiating master
- Slave port supports up to 175 nodes
- Supports master-slave protocols such as Modbus
- Transparent data transmission support
- Independent baud rate and format configuration for each port
- Photoelectric isolation for improved signal integrity
- 15kV ESD protection
- 5kA lightning surge protection
- Anti-static, anti-lightning and anti-surge interface protection
- Built-in overcurrent protection
- Reverse polarity protection
- Three communication port LED indicators
- Supports baud rates up to 115,200 bps
Typical Applications
RS2M2 is suitable for RS-485 systems where multiple controllers, monitoring systems or host devices need to access the same slave network.
Industrial Automation
Share RS-485 slave devices between automation controllers, gateways or monitoring systems.
Remote Monitoring
Support remote monitoring systems that need access to shared serial devices or field instruments.
Energy Management
Allow multiple systems to access RS-485 meters, data loggers or Modbus slave devices.
Alarm Systems
Support alarm panels, controllers and field devices using RS-485 communication.
Access Control
Enable reliable RS-485 communication in access control and security systems.
Control Applications
Suitable for general control systems that require isolated RS-485 communication sharing.
Product Summary
3Wire RS2M2 is a compact 2-channel isolated RS-485 hub designed to allow two RS-485 master devices to communicate reliably with one or more slave devices.
With photoelectric isolation, 15kV ESD protection, 5kA lightning surge protection, independent port configuration and support for up to 175 slave nodes, RS2M2 is a practical solution for robust industrial RS-485 communication networks.
