Industrial Gas Mass Flow Measurement
Direct gas mass flow monitoring without pressure or temperature compensation.

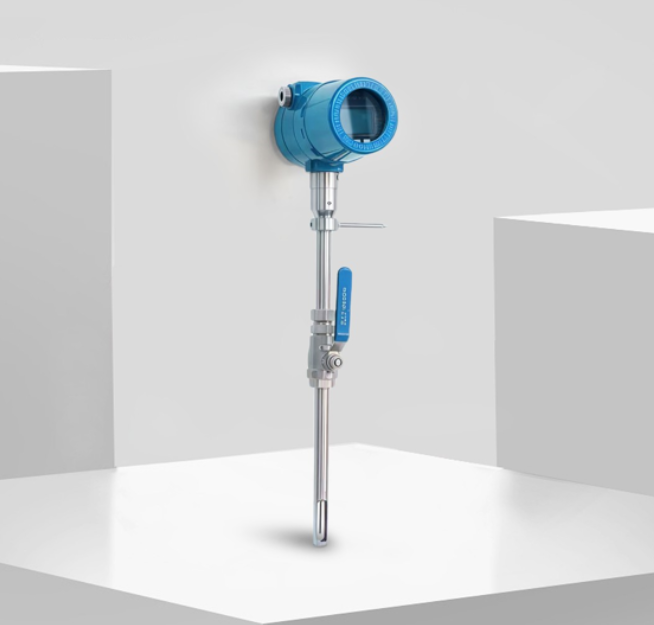

TMF2X is a high-performance thermal mass flow meter designed for accurate and reliable gas flow measurement in industrial applications.
Using thermal diffusion technology with a constant temperature differential principle, it directly measures gas mass flow for stable readings under changing operating conditions.
Introduction
The TMF2X directly measures gas mass flow without requiring pressure or temperature compensation. This makes it suitable for applications where gas conditions may vary and reliable measurement is required.
The meter uses dual platinum resistance temperature sensors. One sensor continuously measures the actual gas temperature, while the other is heated to maintain a fixed temperature differential. As gas flows across the sensor, the cooling effect is measured and converted directly into mass flow rate.
Its fully digital design, robust construction and maintenance-free operation make it ideal for long-term gas monitoring applications in industrial, utility and energy management environments.
Why Use TMF2X?
Direct Mass Flow Measurement
Measures gas mass flow directly without separate pressure or temperature compensation.
Low-Flow and Leak Detection
Wide measuring range makes it suitable for low-flow monitoring and gas leak detection applications.
Industrial Integration Ready
RS485, 4-20mA, relay output and optional HART support integration with PLC, SCADA and automation systems.
Features
- Direct gas mass flow measurement without temperature or pressure compensation
- Supports both mass flow rate and standard volumetric flow output
- Wide measuring range from 0.1 Nm/s to 100 Nm/s
- Suitable for low-flow monitoring and gas leak detection applications
- No moving parts for maximum reliability and extended service life
- Resistant to vibration, contamination and harsh industrial environments
- Fully digital design for stable and accurate measurement performance
- Easy installation, configuration and maintenance
- Online installation capability where operating conditions permit
- Supports insertion, hot-tapped insertion and flanged sensor configurations
- RS485 communication for PLC, SCADA, BMS and industrial automation integration
- Multiple output options including 4-20mA, RS485, relay output and optional HART communication

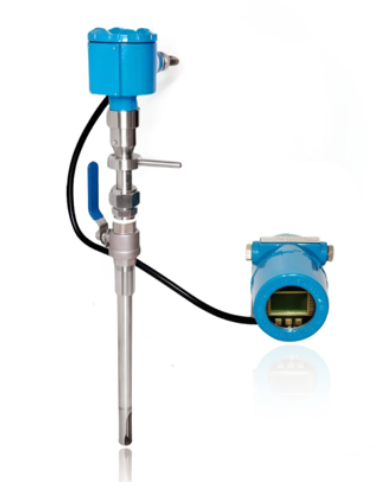

- Available in integrated or remote converter configurations
- IP65 protection rating for reliable field operation
- Stainless steel 304 / 316 sensor construction for durability and corrosion resistance
- Suitable for pipe sizes from DN15 to DN3000
Typical Applications
TMF2X is suitable for gas flow monitoring, industrial utility tracking, compressed air management and process automation applications.
Compressed Air Monitoring
Measure compressed air usage, identify abnormal consumption and support compressed air energy management.
Industrial Gas Consumption
Monitor gas usage across production processes, utilities and plant distribution lines.
Boiler and Burner Fuel Gas
Track natural gas or fuel gas flow for boiler, burner and combustion-related applications.
Natural Gas and Process Gas
Measure natural gas, process gas and selected industrial gases for operational visibility.
Environmental Monitoring
Support emissions monitoring, aeration monitoring and environmental gas flow measurement.
Automation and SCADA
Integrate gas flow data into PLC, SCADA, BMS, EMS and industrial automation systems.
Specifications
The following table summarises the general specifications for the TMF2X thermal mass flow meter.
| Item | Specification |
|---|---|
| Measuring Principle | Thermal Diffusion Mass Flow Measurement |
| Measuring Medium | Various Gases, except acetylene |
| Pipe Size Range | DN15 ~ DN3000 |
| Flow Velocity Range | 0.1 ~ 100 Nm/s |
| Accuracy | ±(1.5% RD + 0.5% FS) |
| Ambient Temperature | -40°C ~ 60°C |
| Gas Temperature | -40°C ~ 150°C; higher temperatures optional |
| Working Pressure | Up to 1.6 MPa; higher pressure options available |
| Power Supply | 24VDC or 220VAC |
| Outputs | 4-20mA, RS485, Relay Output, Optional HART |
| Response Time | 0.5 ~ 1 second |
| Communication | RS485 |
| Display | 4-Line LCD Display |
| Protection Rating | IP65 |
| Sensor Material | Stainless Steel 304 / 316 |
| Installation Types | Insertion, Hot-Tapped Insertion, Flanged |
| Converter Options | Integrated or Remote Type |
| Pipe Materials | Carbon Steel, Stainless Steel, Plastic and Others |
Product Summary
The TMF2X Thermal Mass Flow Meter provides direct and reliable gas mass flow measurement for industrial, utility, compressed air, environmental and process monitoring applications.
With no moving parts, wide pipe size support, insertion and flanged installation options, multiple outputs and industrial communication capability, it is a practical solution for long-term gas flow monitoring and energy management.
